Background: Hematological malignancies are rare and complex diseases and as a consequence, multimodal data (ranging from clinical and genomic information to images) are required to improve diagnosis, prognosis and personalized treatments. However, collecting all these layers of information is challenging, in particular when collecting cytological and histological images from the bone marrow (BM) reproducing disease morphologic features. Synthetic data generation by Artificial Intelligence (AI) can circumvent these issues by generating images conditioned from textual inputs (i.e. reports from pathologists), which are widely available and contain many useful clinical information. This technology can enrich data with synthetic images, thus boosting translational research and improving the performances of precision medicine strategies based on multimodal information.
Aims:This project was conducted by GenoMed4all and Synthema EU consortia, with the aim to:1)Apply generative models to real-world dataset with histological images of patients with myeloid neoplasms (MN). 2) Develop a Synthetic Images Validation Framework (SIVF) to evaluate the utility and fidelity of generated images. 3) Verify the capability of synthetic images to accelerate research and to improve clinical models.
Methods:We implemented Stable Diffusion (SD) generative model fine-tuned on hematological data to generate Hematoxylin and Eosin (H&E) images of MN patients. We implemented a domain specific language model (HematoBERT) to encode textual input as condition for the generation process. Use cases were Myelodysplastic Syndrome (MDS), Acute Myeloid Leukemia (AML) and Myeloproliferative Neoplasm (MPN) patients, with available BM biopsies and their reports from pathologists, genomic and clinical data. We applied SIVF to evaluate distributions of morphological features extracted from real and synthetic images.

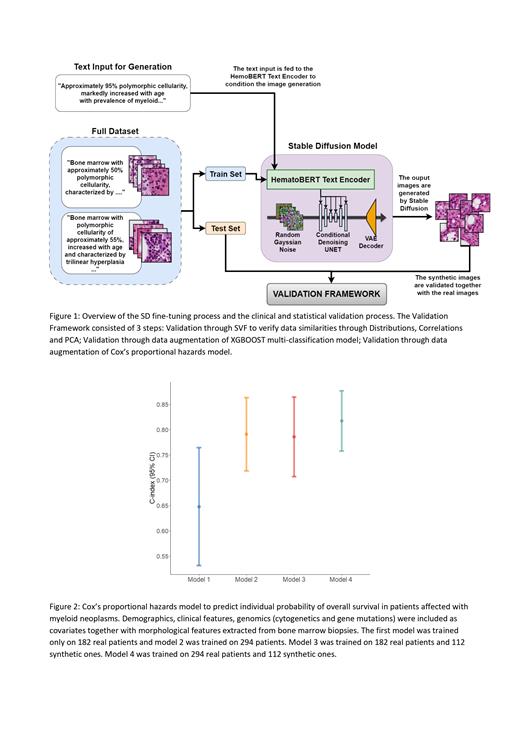

Clinical validation was performed on disease classification and survival probability prediction, using real and synthetic images features (experimental setting is reported in Figure 1).
Results: We trained SD model on 200 patients with available BM biopsies and associated reports. We first performed SIVF to compare extracted morphological features (geometrical, color and texture features of cells nuclei) from synthetic and real images of 55 patients never seen by the model. Results proved that features distributions and correlations in both datasets were comparable. Similar results were obtained performing SIVF on each single patient data.
We verified if synthetic data augmentation could improve performances on MN classification (i.e. models able to correctly assign a single patient to a specific clinical entity according to the 2022 WHO classification criteria). We implemented three XGBOOST models to classify patients' disease. Classifiers were trained and validated on morphological extracted features of images from a real set of patients (n=614), a synthetic group (n=396) and a mixed dataset (n=1010). Data augmentation improved classification performance by 10% (F1 Score) when we tested it on the three different validation sets.
Finally, demographics, clinical features, genomics (cytogenetics and gene mutations) were included as covariates together with morphological features extracted from BM biopsies in L1 penalized Cox's proportional hazards models, considering Overall Survival as primary endpoint. Models were fitted on two different cohorts of real patients (n=182, n=294). Then we added 112 synthetic patients to both sets and refitted the models. We observed an improvement in performances of >10% (C-Index) for both cases (Figure 2), with morphological features (such as “major axis” of nuclei) being selected among the best predictors.
All these results confirmed that data augmentation through synthetic data is a viable approach and can significantly improve the models capability to efficiently capture clinical outcomes at individual patient level.
Conclusion:AI generated images preserve properties of real-world images, replicating cells morphological features relevant to identify hematological diseases and their clinical status. This approach based on widely available textual data allows effective data augmentation and effortless data sharing, thus accelerating and improving precision medicine research in hematology.
Disclosures
Santoro:Incyte: Consultancy; Celgene (BMS): Speakers Bureau; BMS: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Sanofi: Consultancy; Amgen: Speakers Bureau; AstraZeneca: Speakers Bureau; Servier: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Gilead: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Pfizer: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Eisai: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Bayer: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Merck MSD: Membership on an entity's Board of Directors or advisory committees, Speakers Bureau; Takeda: Speakers Bureau; Roche: Speakers Bureau; Abbvie: Speakers Bureau; Eli Lilly: Speakers Bureau; Sandoz: Speakers Bureau; Novartis: Speakers Bureau; Arqule: Other. Kordasti:Beckman Coulter: Honoraria; Novartis: Honoraria, Membership on an entity's Board of Directors or advisory committees; MorphoSys: Research Funding. Santini:BMS, Abbvie, Geron, Gilead, CTI, Otsuka, servier, janssen, Syros: Membership on an entity's Board of Directors or advisory committees. Platzbecker:Silence Therapeutics: Consultancy, Honoraria, Research Funding; Takeda: Consultancy, Honoraria, Research Funding; Bristol Myers Squibb: Consultancy, Honoraria, Membership on an entity's Board of Directors or advisory committees, Other: travel support; medical writing support, Research Funding; Servier: Consultancy, Honoraria, Research Funding; Janssen Biotech: Consultancy, Research Funding; Syros: Consultancy, Honoraria, Research Funding; Merck: Research Funding; Curis: Consultancy, Research Funding; Geron: Consultancy, Research Funding; Roche: Research Funding; BeiGene: Research Funding; BMS: Research Funding; MDS Foundation: Membership on an entity's Board of Directors or advisory committees; AbbVie: Consultancy; Novartis: Consultancy, Honoraria, Research Funding; Celgene: Honoraria; Jazz: Consultancy, Honoraria, Research Funding; Fibrogen: Research Funding; Amgen: Consultancy, Research Funding. Diez-Campelo:Novartis: Consultancy, Honoraria, Membership on an entity's Board of Directors or advisory committees; Gilead Sciences: Other: Travel expense reimbursement; BMS/Celgene: Consultancy, Honoraria, Membership on an entity's Board of Directors or advisory committees, Other: Advisory board fees; GSK: Consultancy, Membership on an entity's Board of Directors or advisory committees. Fenaux:AbbVie: Consultancy, Honoraria, Research Funding; Jazz: Consultancy, Honoraria, Research Funding; Janssen: Consultancy, Honoraria, Research Funding; French MDS Group: Honoraria; Novartis: Consultancy, Honoraria, Research Funding; Bristol Myers Squibb: Consultancy, Honoraria, Research Funding. Zeidan:Novartis: Consultancy, Honoraria; Boehringer-Ingelheim: Consultancy, Honoraria; Incyte: Consultancy, Honoraria; Agios: Consultancy, Honoraria; Servier: Consultancy, Honoraria; Seattle Genetics: Consultancy, Honoraria; Amgen: Consultancy, Honoraria; Janssen: Consultancy, Honoraria; Genentech: Consultancy, Honoraria; Zentalis: Consultancy, Honoraria; Astex: Research Funding; Shattuck Labs: Research Funding; Syros: Consultancy, Honoraria; Lox Oncology: Consultancy, Honoraria; ALX Oncology: Consultancy, Honoraria; Orum: Consultancy, Honoraria; Notable: Consultancy, Honoraria; BioCryst: Consultancy, Honoraria; Takeda: Consultancy, Honoraria; Ionis: Consultancy, Honoraria; BeyondSpring: Consultancy, Honoraria; Otsuka: Consultancy, Honoraria; Epizyme: Consultancy, Honoraria; Syndax: Consultancy, Honoraria; Gilead: Consultancy, Honoraria; Kura: Consultancy, Honoraria; Chiesi: Consultancy, Honoraria; Mendus: Consultancy, Honoraria; Tyme: Consultancy, Honoraria; Schrödinger: Consultancy, Honoraria; Regeneron: Consultancy, Honoraria; Foran: Consultancy, Research Funding; Taiho: Consultancy, Honoraria; Geron: Consultancy, Honoraria; Astellas: Consultancy, Honoraria; Daiichi Sankyo: Consultancy, Honoraria; Jazz: Consultancy, Honoraria; Celgene/BMS: Consultancy, Honoraria; Pfizer: Consultancy, Honoraria; AbbVie: Consultancy, Honoraria. Haferlach:MLL Munich Leukemia Laboratory: Current Employment, Other: Equity Ownership. Della Porta:Bristol Myers Squibb: Honoraria, Membership on an entity's Board of Directors or advisory committees.
